Home > Products > Splitter , Switch,Extender and Converter > HDMI Splitter > 4K x 2K 30hz 1x2 HDMI Splitter

  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
  • 4K x 2K 30hz 1x2 HDMI Splitter
4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter 4K x 2K 30hz 1x2 HDMI Splitter

4K x 2K 30hz 1x2 HDMI Splitter

  • Product Item : KS-HDP02
  • Category: HDMI Splitter
  • Product description:HDMI Splitter 1 in 2 Out, 1x2 HDMI Splitter Supports 3D 4K x 2K @30HZ Full HD 1080P, Support Two TVs or Multi Monitor Adapter at Same Time
  • Order online
Introduction:

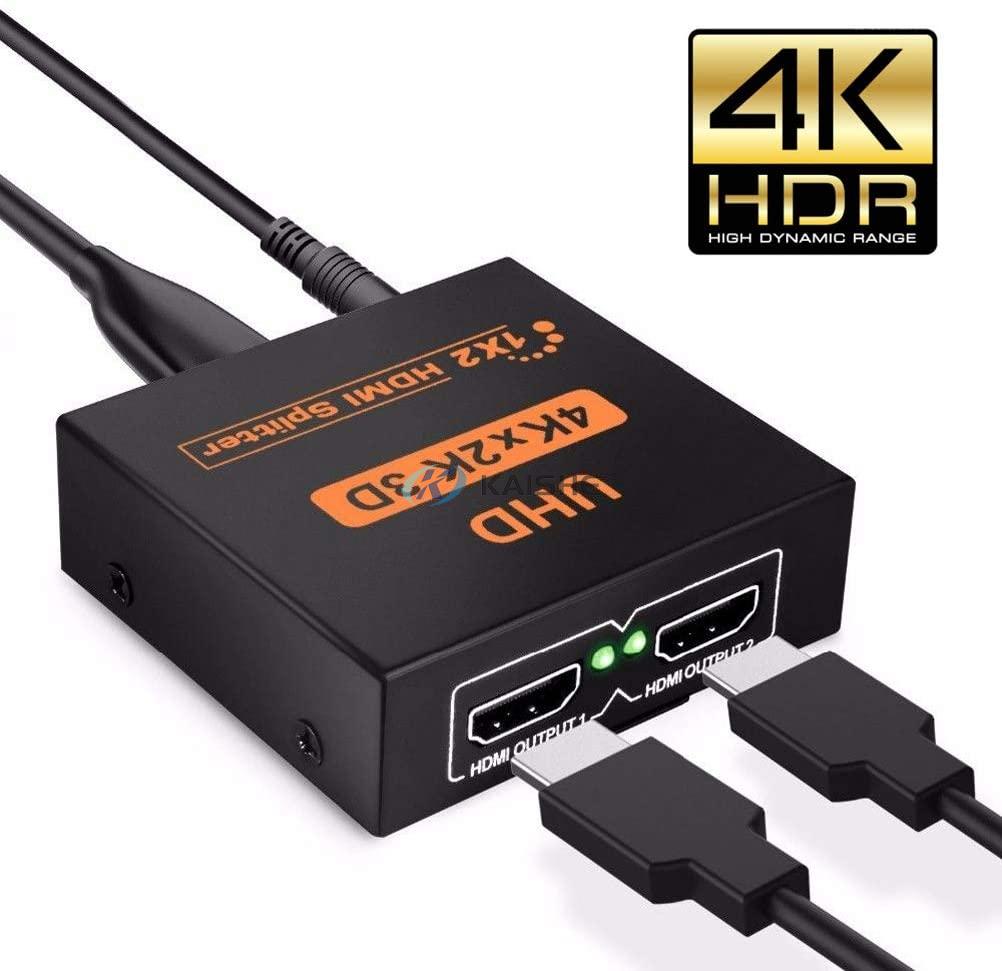

4K HDMI Splitter 1X2 distributes 1 HDMI source to 2 HDMI displays simultaneously with 3D compatibility.
It provides HD solutions for HDTV retail and display sites, HDTVs, STBs and DVDs.
Ideal for projector factories, noise, space and security issues, data center control, information distribution, boardroom demonstrations, school and corporate training environments.

feature:
1. An HDMI 1.4V signal input is split into two HDMI 1.4V sink devices
2. Support 3D and CEC
3. Digital audio formats such as DTS-HD / Dolby-realHD / LPCM7.1 / DTS / Dolby-AC3 / DSD / HD
Support for dark 30bit, 36bit, Blu-ray 24/50 / 60fs / XvYCc
5. Support signal retiming

Product Specifications:
Input video signal: 0.501.0 volts p-p
Input DDC signal: 5 volt p-p (TTL)
Maximum single link range: 4K X 2K 30HZ
Output video: HDMI 1.4a + HDCP1.0 / 1.1 / 1.2 / 1.3
Resolution DTV / HDTV: 576i / 576P / 720p / 1080i / 1080p / 4K
HDMI version: HDMI 1.4a
Power: DC 5V
Digital audio formats: DTS-HD / Dolby-true-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD

connection
1. Connect the input source and output monitor to the HDMI distributor.
See Connecting images.
2. Connect the DC 5V power to the splitter.
Please note that higher voltage power supplies may damage the splitter.
3. When the input source and output display are connected and turned on, the corresponding LED will light.
4. USB charging power supply, 5V USB power supply must be connected before using this HDMI distributor
