HDMI resolution: Max to 3840×2160@30Hz
Video input format: 8/10/12bit Deep color
Video output format: YUV/JPEG
Video output resolution: Max to 1920×1080@30Hz
Support audio format: L-PCM
Input cable length: ≤ 15m, AWG26 HDMI standard cable
Support most acquisition software, such as VLC / OBS / Amcap, etc
Support multiple operating systems, such as Windows / Android / MacOS
Interface: USB 2.0
Conform to USB Video and UVC standard; USB Audio UAC standard
Max working current: 0.4A/5V DC
Dimension (L x W x H): 64x28x13 (mm)
Without external power supply, compact and portable. Easy to do live streaming, no driver needed
Works with most device, such as PC,Laptop. Linux System, Mac,Camera
Works with ZOOM,OBS,XBOX,Youtube,Face Live, Twitter, Twitch and more
Easy Setup, just add the server host and token of your live
1: Connect the UHD signal source with the HDMI input port of the USB capture card through 1 HDMI cable.
2: Plug the USB male header of the USB capture card into the USB port of the computer.
3: Acquisition steps (OBS): Open the software → add a new source → select ‘video capture device’ → set the screen size →select ‘Studio Mode’ (dual window) → click ‘Start Recording’(as shown in the example below).
1. Add a new source and select ‘Video Capture Device’.
2. Set the screen size.
3. Select ‘Studio Mode’ (dual window) and the above settings are completed.
Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM

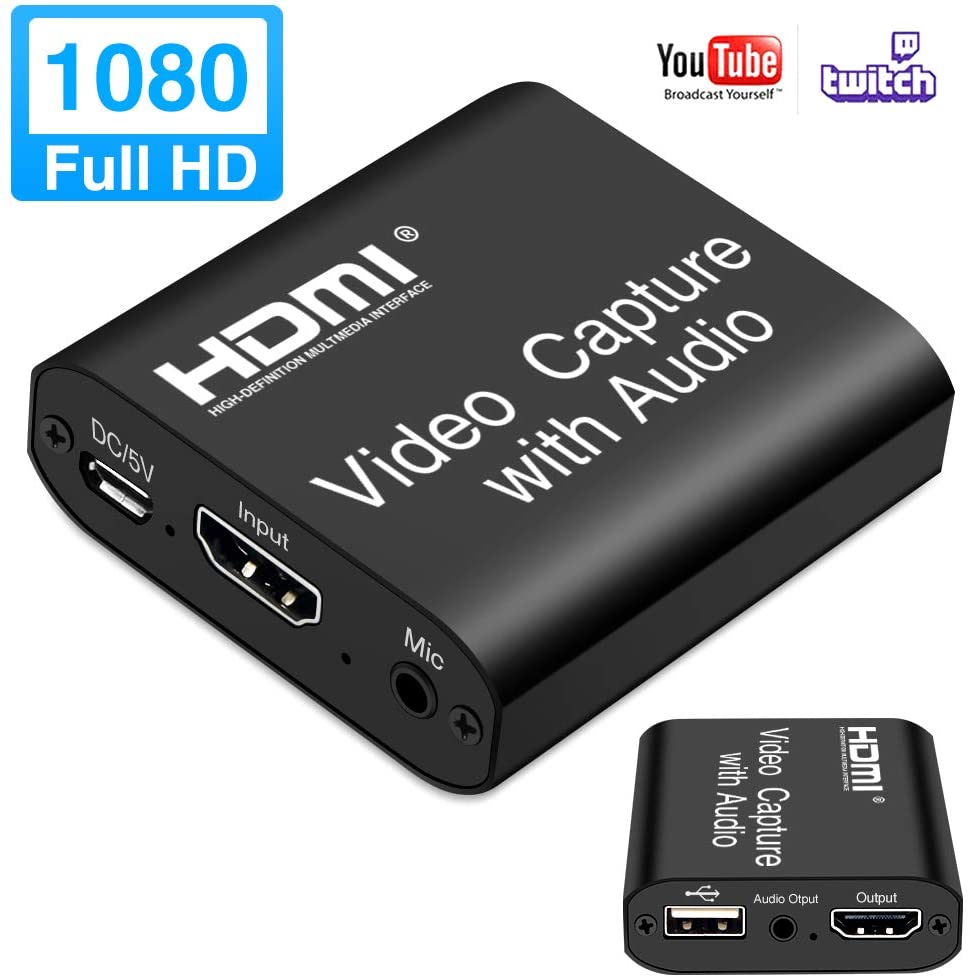

Audio Video Capture Card
