1.0 INTRODUCTION

This kind of the Converter is an HDMI converter. It converters HDMI input into analog YPbPr Video and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional YPbPr monitors or projectors.

It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, Information distribution, Conference room presentation, school and corporate training environments.

2.0 FEATURES

The series of the HDMI Amplifier Converter  have many features that enable them to perform in a superior manner. among those features you will find:

1. Easy to Use: Install in seconds, no need of setting;

2. Conversion: It could convert complete HDMI into YPbPr video and R/L audio

  output;

3. Supports HDCP1.2;

4. Supports 165MHz/1.65Gbps per channel(6.75Gbps all channel)bandwidth

  for HDMI Input;

5. Supports Analogue Video output up to UXGA and 1080P witch 10-bit DAC.

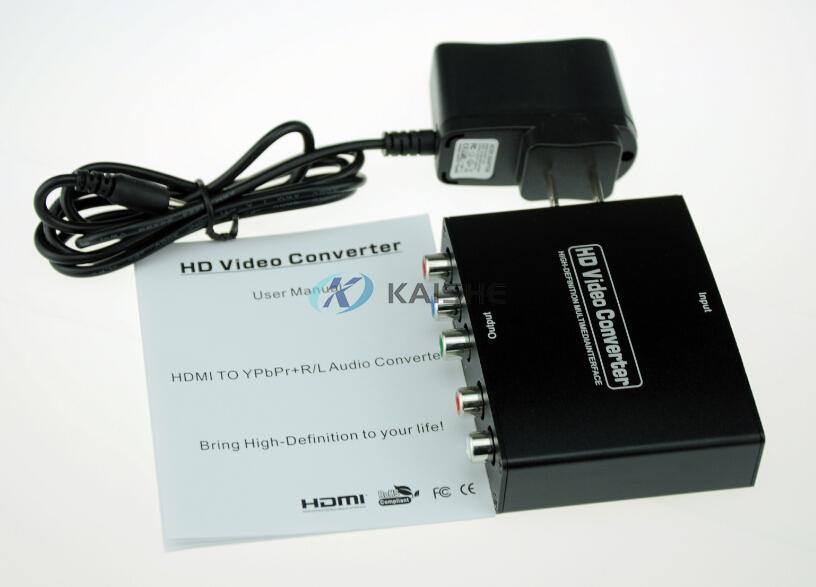

3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

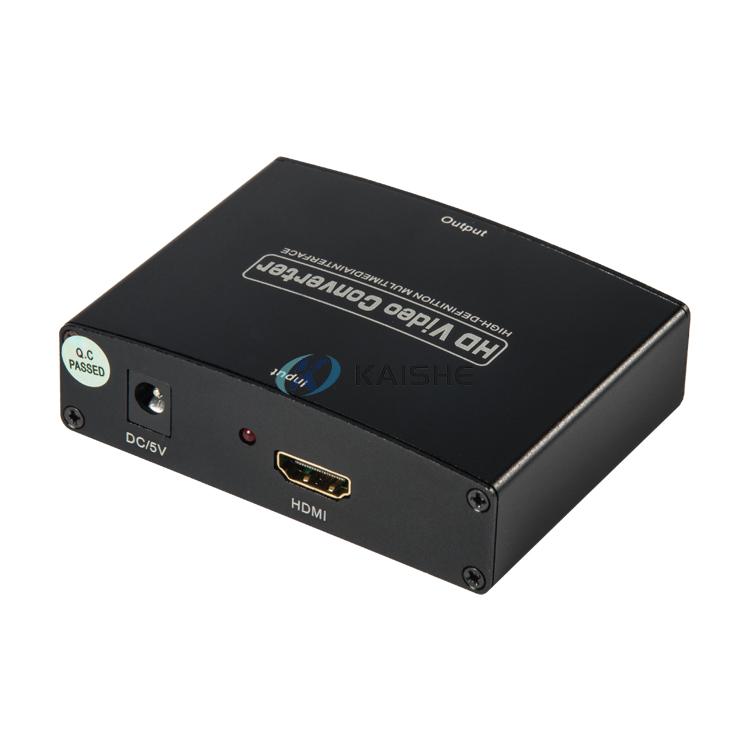

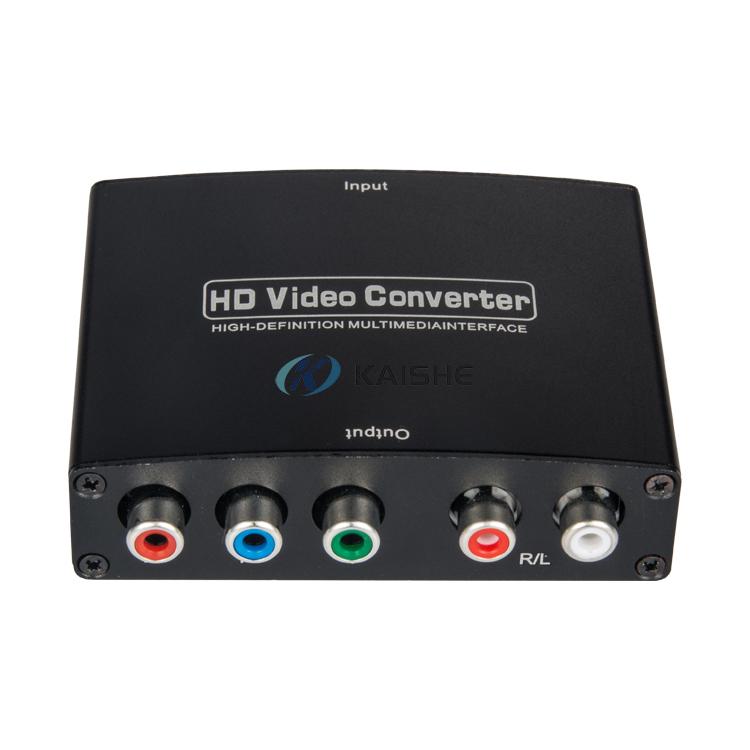

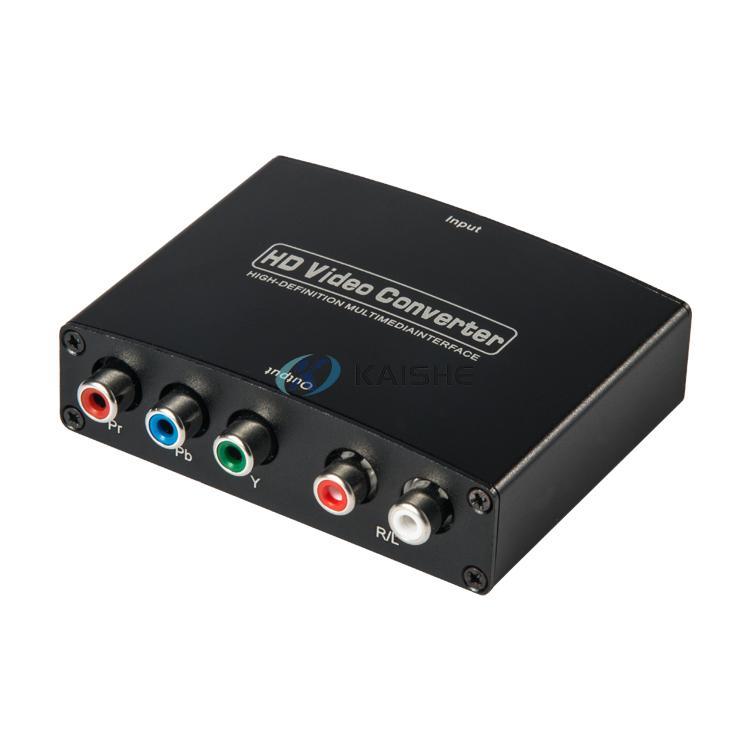

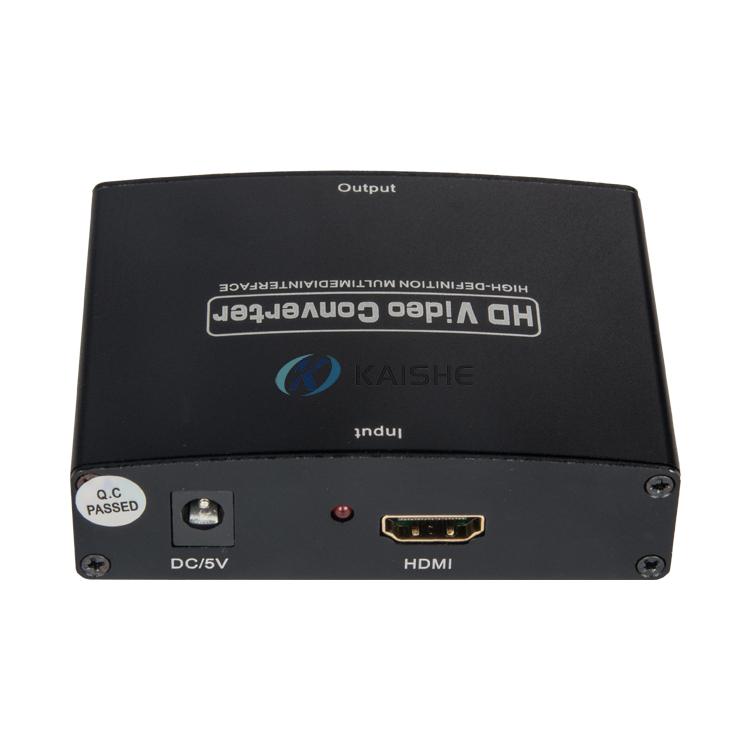

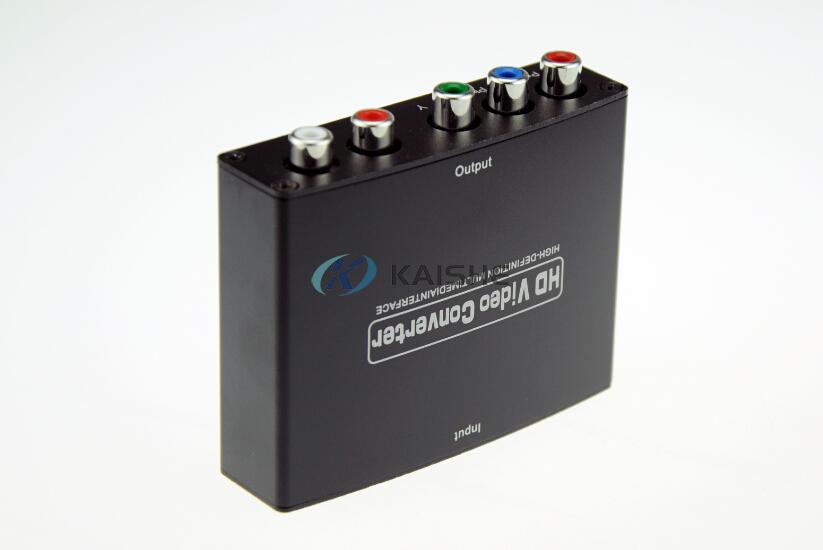

(1)HDMI TO YPbPr Converter-----------------1Pcs

(2)5V DC Power Supply-------------------------1Pcs

(3)User Manual------------------------------------1Pcs
