1.0 Introduction:

VGA Splitter is a product which can distribute VGA signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

VGA signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other VGA enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1. VGA splitter come with attractive appearance,easy to install.

2. Do not need to plus additional hardware or software.

3. Video resolution can reach 1920 x1440 @ 60 Hz and support the DDC, DDC2, DDC2B function.

4. Support DOS,WIN3.X,WIN95/98/98SE/2K/ME/XP/NT,Linux Netware,Unix and other operating systems.

5. Support plug and play ,can be free to change the quantity of display without shut down.

6. Extend the transmission distance and improve transmission signal.

7. Metal casing design and overall shielding without signal interference.

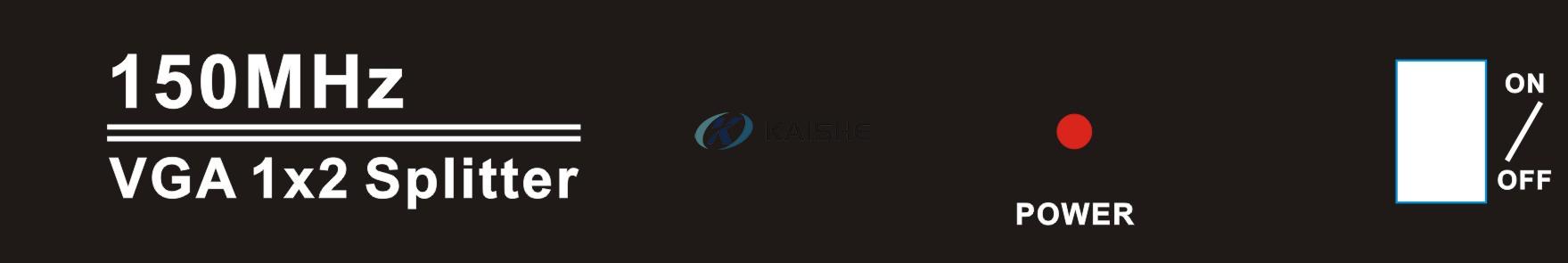

8. Led indicates signal and power mode.

9. Power supply (please refer to technical parameter).



   3.0 Packaging accessories:

   1. VGA 1×2 Splitter---------------------------------------------------1 Pcs

   2. 5V DC Power Adaptor--------------------------------------------1 Pcs

   3. User Manual--------------------------------------------------------1 Pcs



   4.0 Technical parameters

   VGA Source Input Port-----------------------------------------------------------------------1

   Display Device Output Port-----------------------------------------------------------------2

   Source Port Connector--------------------------------------------------VGA-HDDB-15P.

   Display Device Port Connector----------------------------------------VGA-HDDB-15P

   Screen Resolution------------------------------------------------------1920*1440@60Hz

   Bandwith--------------------------------------------------------------------------------150MHz

   Power Consumption(max.)--------------------------------------------------------2.5Watts

   Operation Temperature-------------------------------------------------------------0℃-70℃

   Working Voltage-------------------------------------------------------------------------DC 5V

   Power Adaptor---------------------------------------------------------------------------5V 1A

   Net Weight-------------------------------------------------------------------------------0.13Kg

   Dimension: L*W*H(mm)------------------------------------------------------ 149.5x64x25
